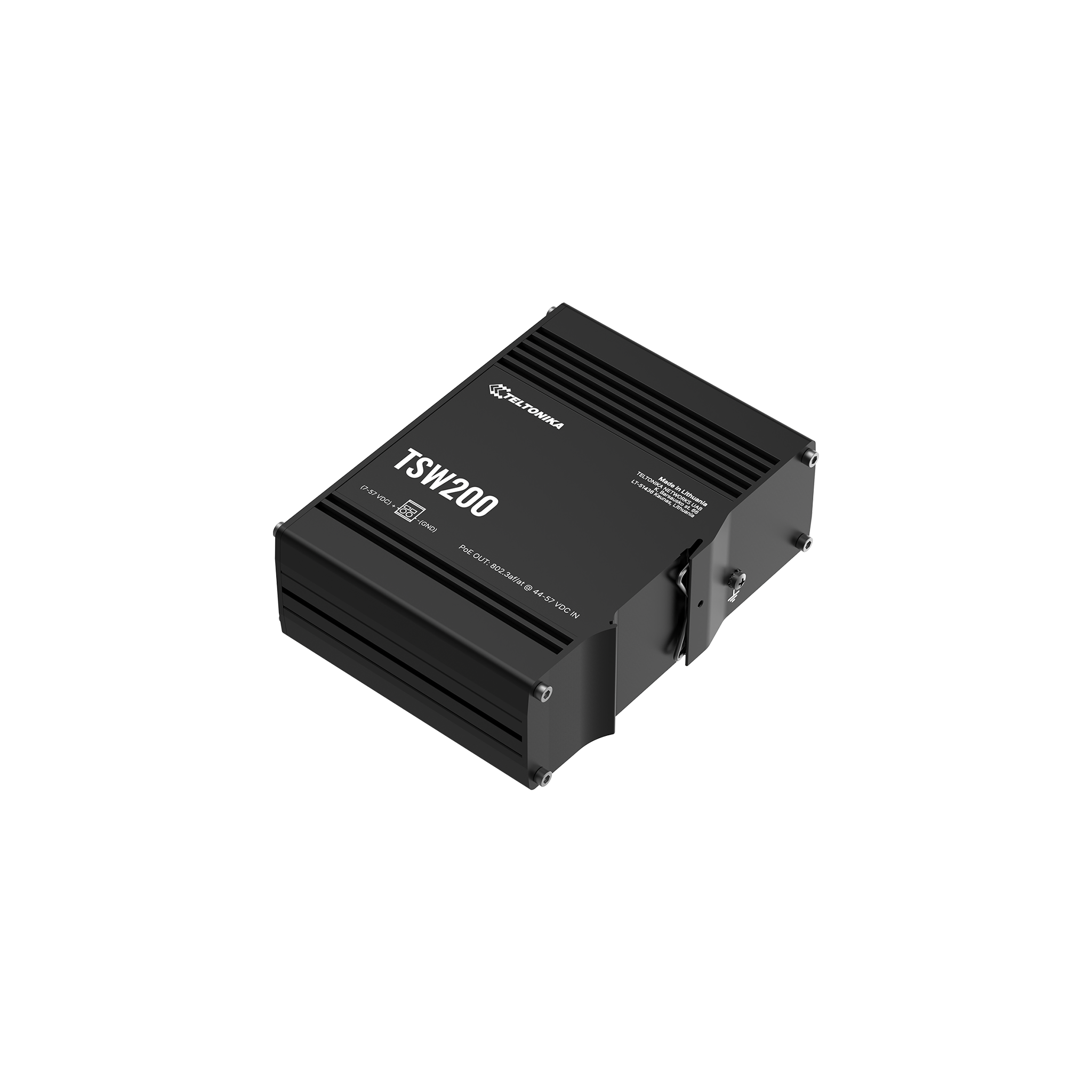

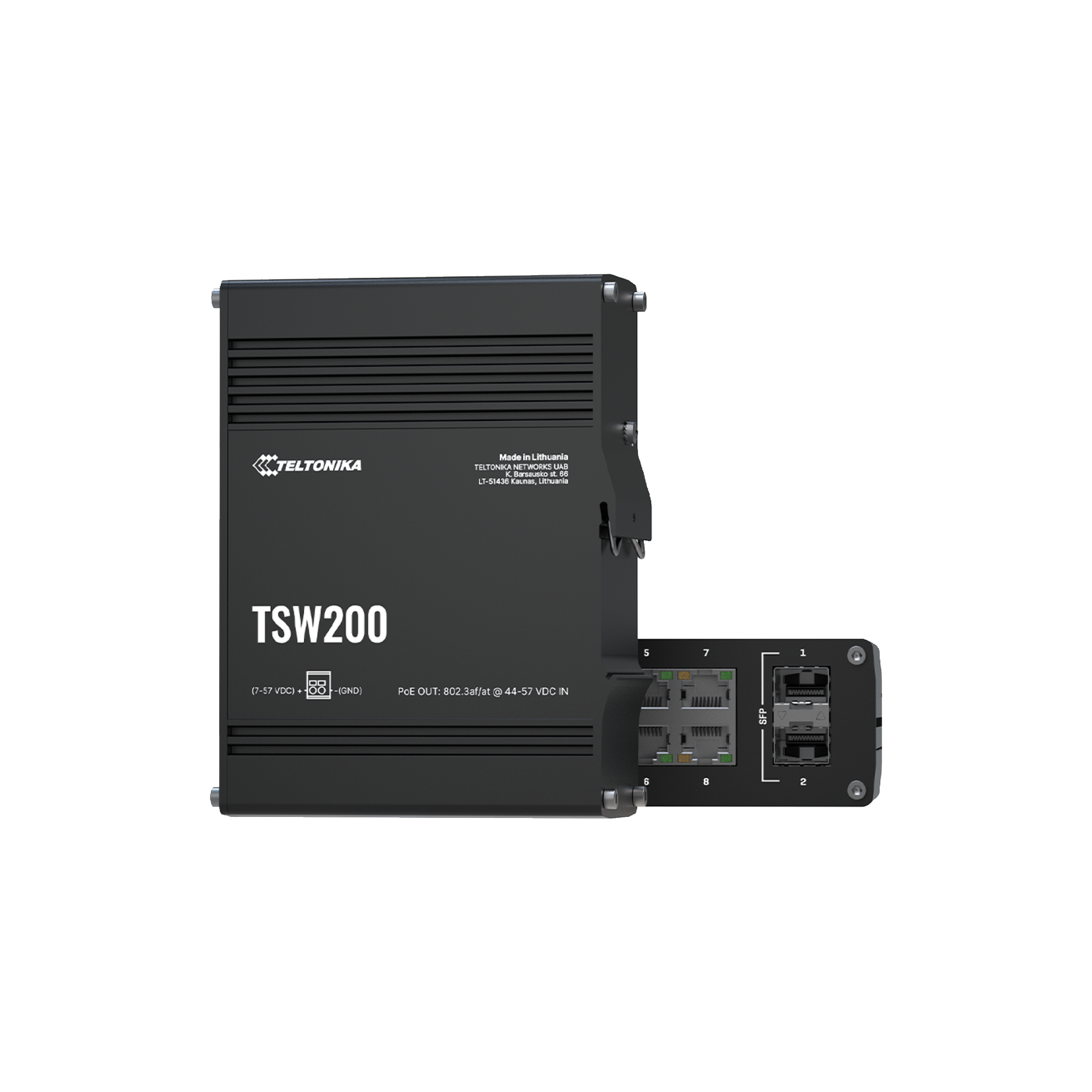

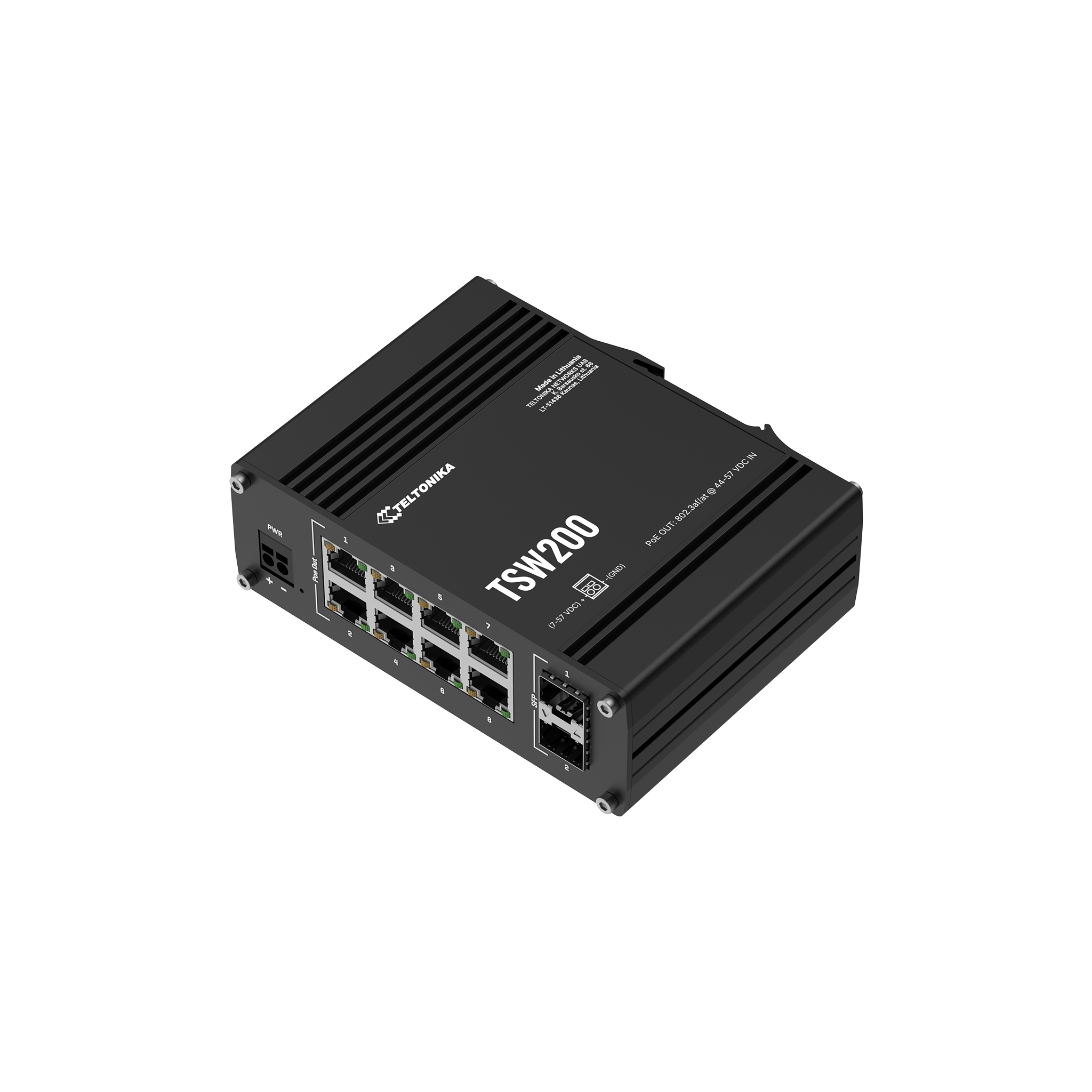

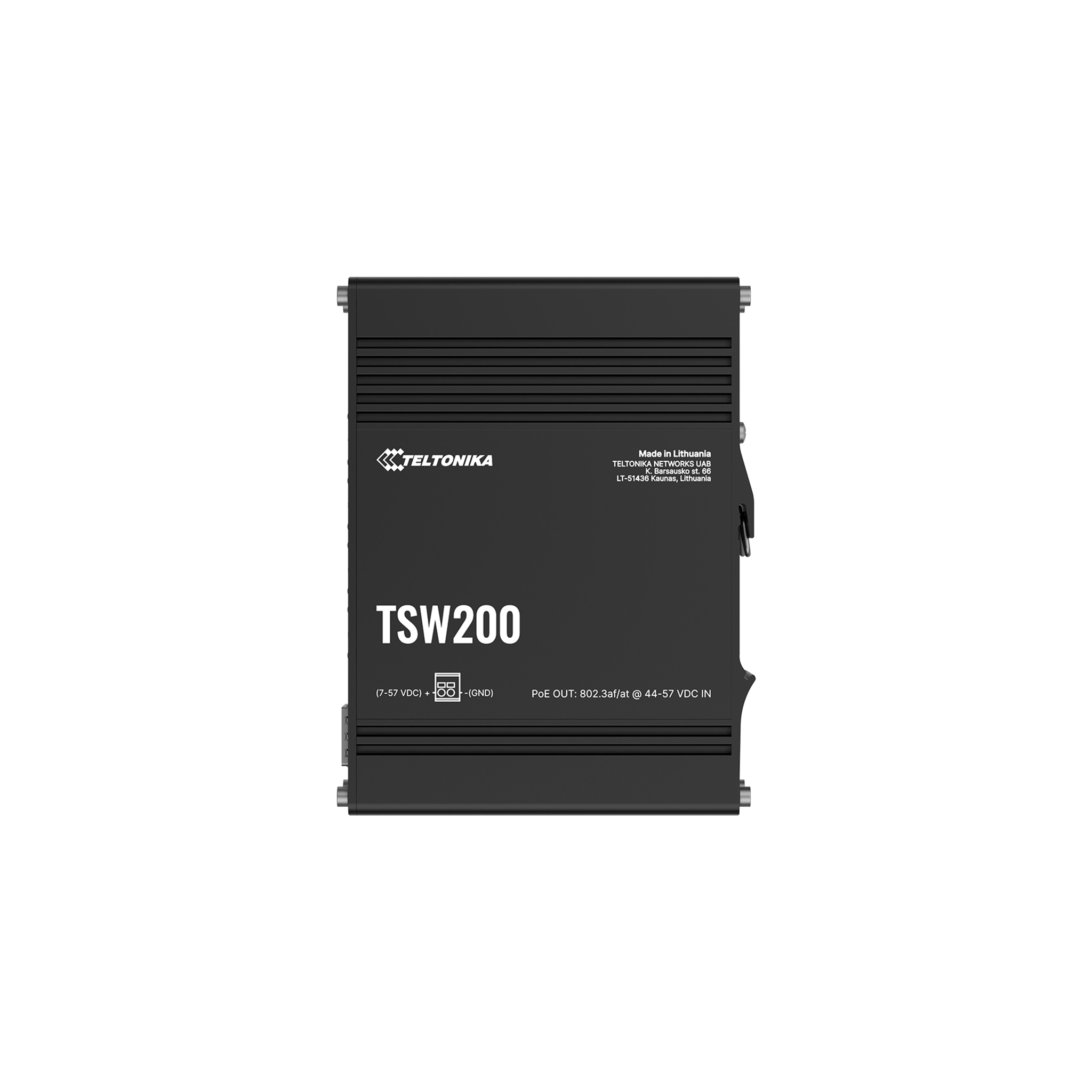

Teltonika TSW200 Industrial PoE+ Switch with 250W PSU

SKU: TSW200000070

Description

The TSW200 is a robust industrial Ethernet switch designed for high-performance networking in demanding environments. It includes two SFP ports for long-range fiber-optic communication and eight Gigabit Ethernet ports that support PoE+ (IEEE 802.3af/at) standards, enabling both data and power delivery through a single cable. With a total power budget of up to 240 W and up to 30 W per port, it allows efficient centralization of power for multiple devices.

Package Includes

1x TSW200
1x 2-PIN POWER SUPPLY, 250 W
QSG (Quick Start Guide)

Availability: Limited Stock. Send a Request to Check Inventory.

$187.00 USD ~~$199.00 USD~~

Save $12.00

Quantity

Thank you for reaching out!
Your request has been successfully submitted.
Our team will review and get back to you shortly.

Continue shopping

Connect with our Experts

Interested in uncovering more information or initiating a conversation about your connectivity needs?Don't hesitate to connect with our team, we will get back to you within one business day.

All fields are required.

Name

Last Name

E-mail

Phone

Company

What Are Your Connectivity Needs?

Quantity

Purchasing time frame

Purchasing Role

Inquiry Details

Technical Specifications

Hardware

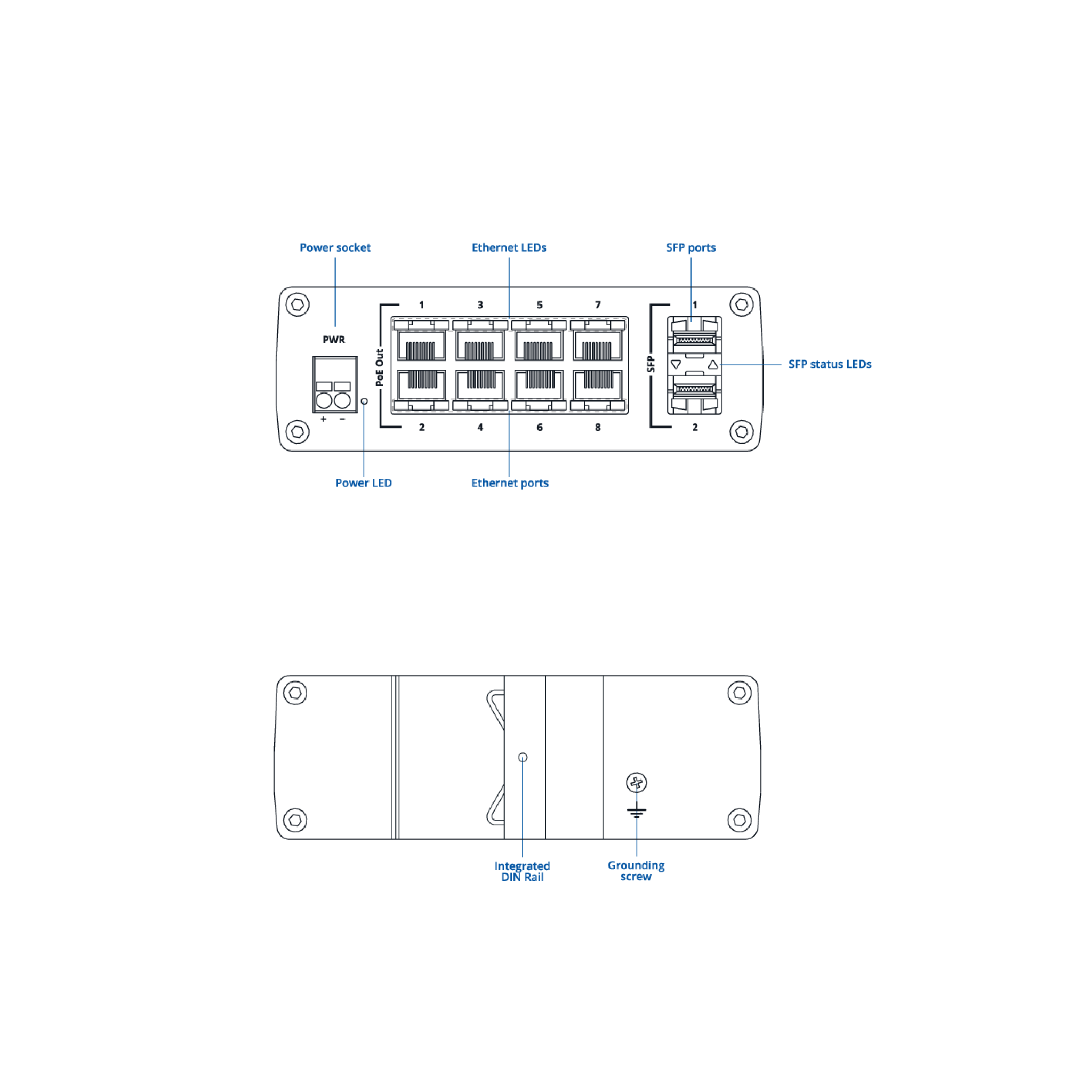

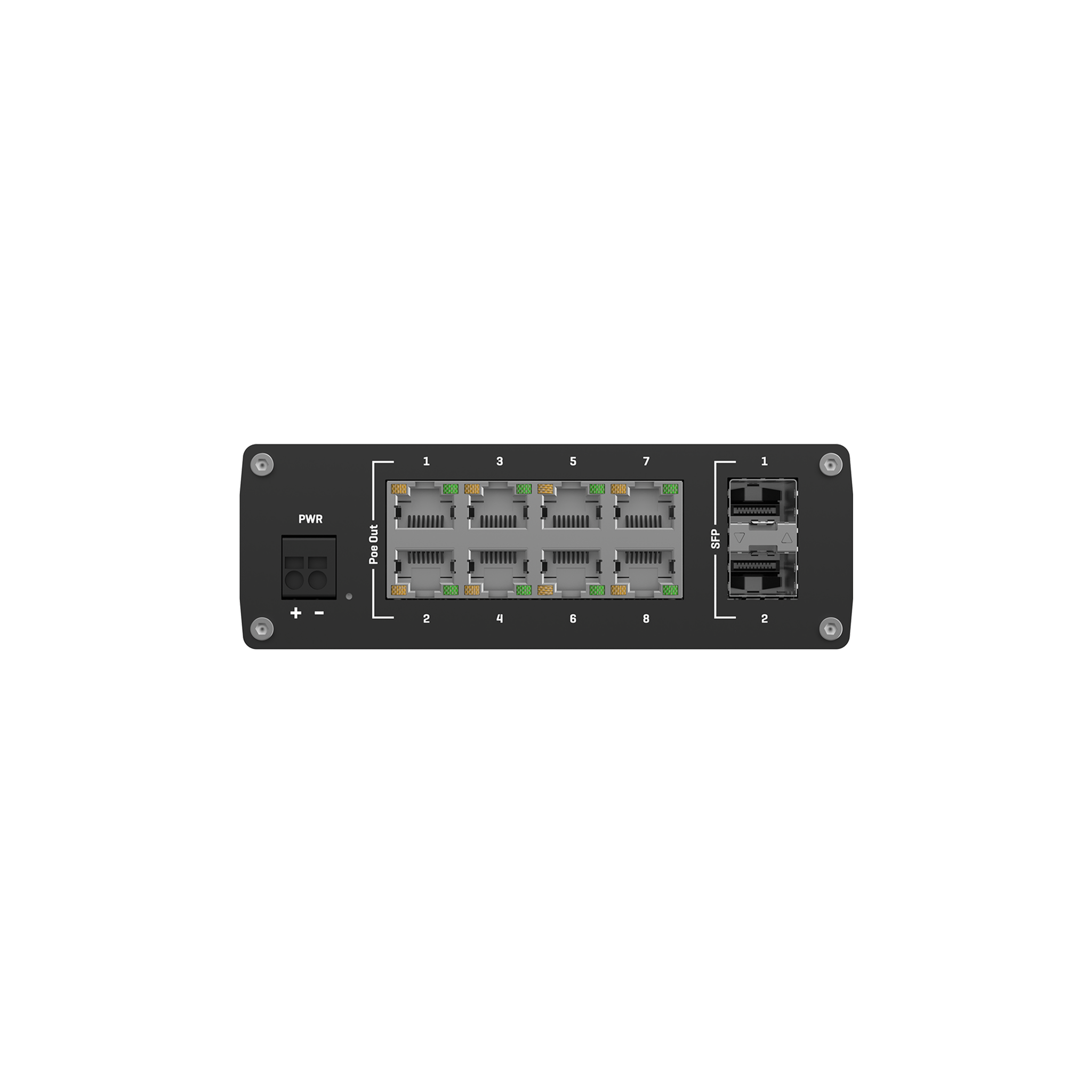

Ethernet Ports

8 Ports

Port Speeds

10/100/1000 Mbps

Auto-Negotiation

SFP / Fiber

2 Ports

Management Type

Unmanaged

Network Features

N/A

Industrial Protocols

PROFINET

Mounting Options

Desktop

DIN Rail Mount Kit (Sold Separately)

Warranty

2 Year

Extended Warranty available for additional protection, Sold separately.

Box Weight

2 lb

Dimensions

Length: 148 mm

Width: 173 mm

Height: 71 mm

Power

Power (PSU)

2-pin Industrial DC Power Socket

7 – 57 VDC

Power Budget

240 Watt (Total PoE Power Budget)

30 Watt per port

PoE Ports

8 Ports

PoE Standards

PoE - 802.3af

PoE - 802.3at - (PoE+)

Power over Ethernet (PoE)

Performance

Bandwidth (Non-blocking)

20 Gbps

Packet Buffer

128 KB

Mac Address Table Size

2K (2,048 entries)

Jumbo Frame Support

9216 bytes

Forwarding Rate

N/A

IEEE 802.3 Standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

IP Rating

IP30

Teltonika Networks

PoE Switch

Built for reliability and simplicity, designed to power and connect multiple network devices in one streamlined solution.

Teltonika Networks

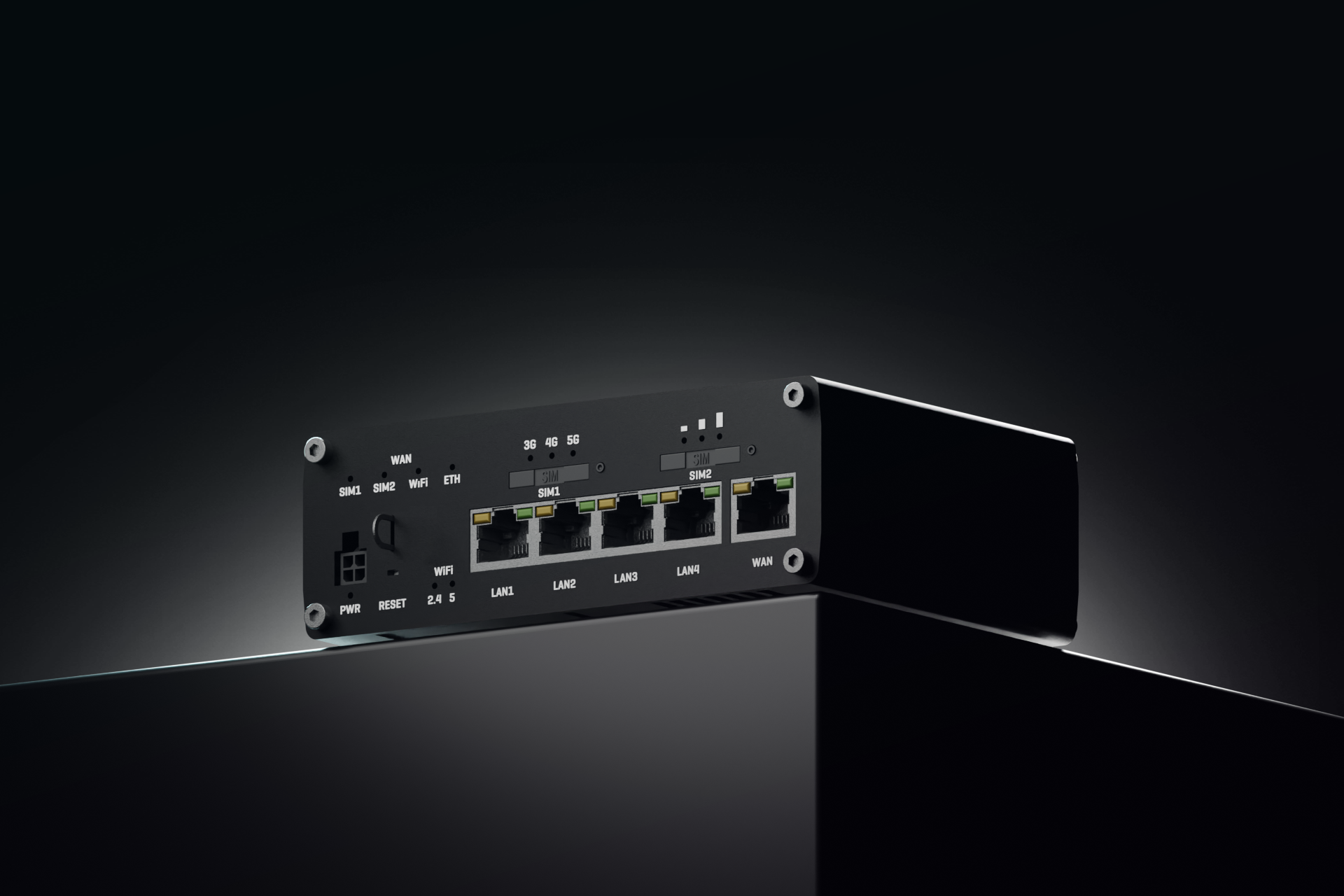

4G LTE
